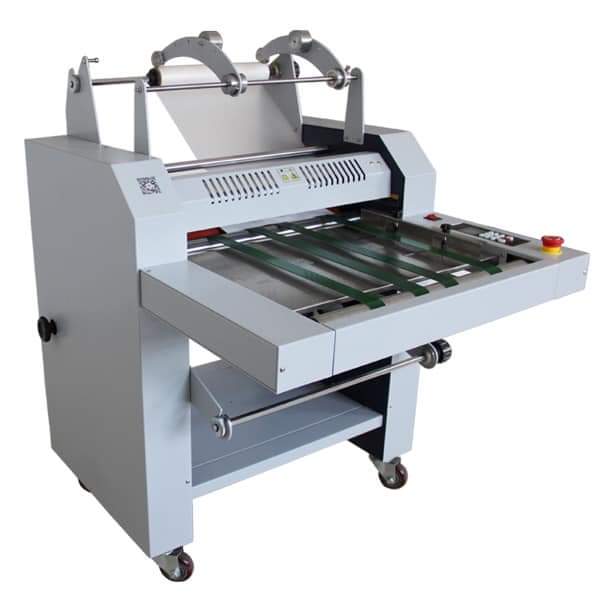

Roll To Roll Lamination Machine

  • Max. lamination width:490mm
  • Max. lamination speed:10METER/min
  • Max. lamination temperature:150C
  • Steel roller DIA;100MM
  • The maximum diameter of roll film:500
  • Recommended film:25-250mic
  • Warm up time:about 10 minute
  • Speed control:manual
  • Single-sided laminating function:YES
  • Double-sided laminating function:YES
  • Hot laminating:YES
  • Cold laminating:YES
  • With a perforating blade:YES
  • Pull roller dia:45MM
  • Electric:AC220,110V /50,60HZ,2200W
  • Diameter of the core:1,1.5,3 inch
  • Display:numerical control
  • Temperature control:SENSOR
  • Machine size: 900X780X1000mm
Model:- SITLM-490
